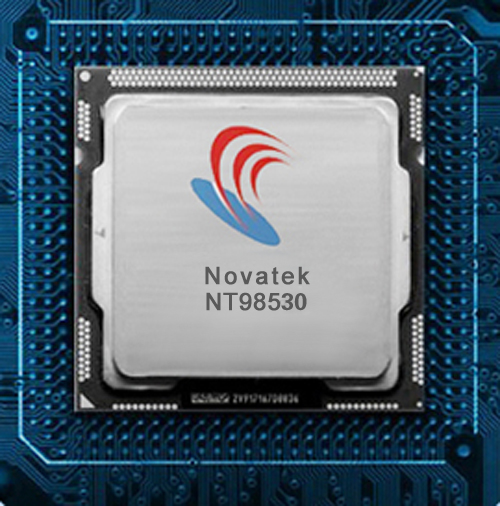

NT98530

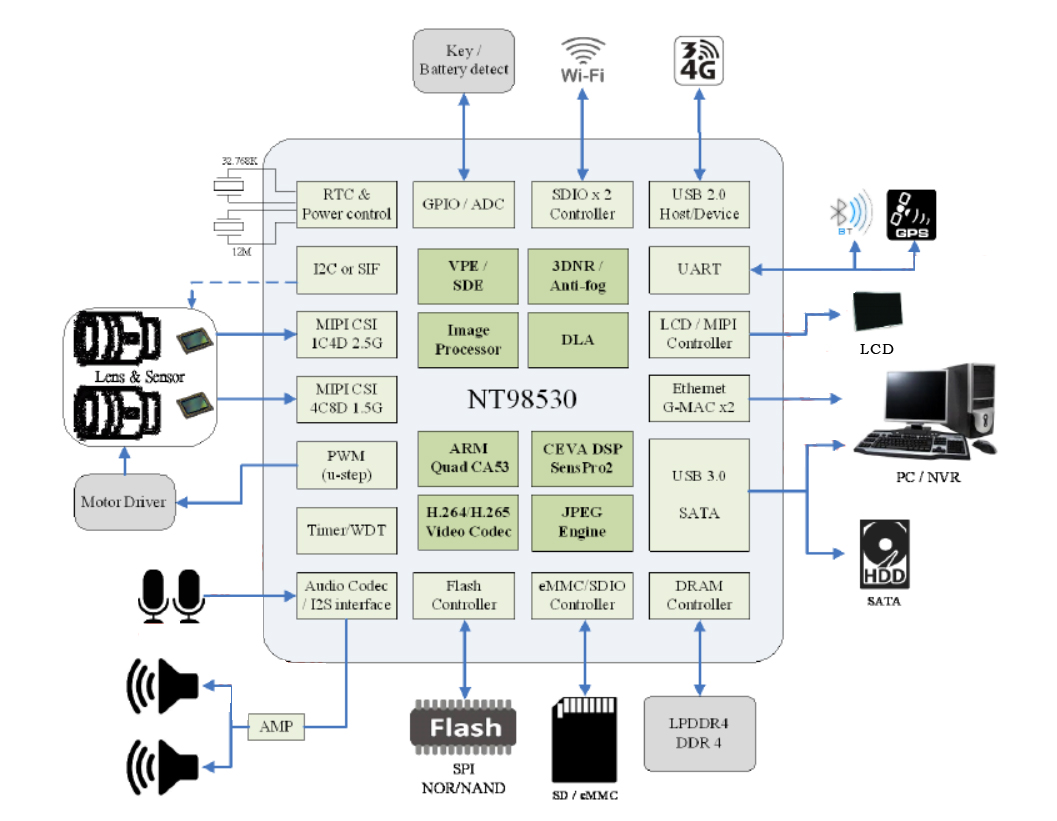

Novatek NT98530 is a highly-integrated SoC with high image quality, low bitrate, low power consumption,

targets on 8Mp60 Edge-Computing IP camera application. The SoC integrates ARM Quad Cortex A53 CPU

core, new generation ISP, H.265/H.264 video compression encoder, DSP, highperformance hardware DLA

module, graphic engine, dual display controller, Ethernet GMAC, USB3.0and USB 2.0 Host/Device, audio codec,

RTC and SD/SDIO 3.0 to provide best cost performance Edge-Computing IP camera solution.

nHigh Performance 32-bit CPU

 Quad Core ARM® Cortex™ A53

 NEON™ and FPU acceleration

 32 KB instruction cache, 32 KB data cache and 512 KB L2 cache

 Embedded ICE makes firmware debugging easier

    nPower Management features

 Firmware configurable operating frequency of each functional block to meet best power budget

       nIntegrated Clock Generator

 Internal PLL with spread spectrum capability

 12MHz system

 32768Hz RTC oscillator

       n Scalable Memory Bus Architecture

 One 32-bits DDR4/LPDDR4/LPDDR4X SDRAM interface, supporting up to 16Gb+16Gb

 DRAM operating data rate up to DDR4 3200/LPDDR4/LPDDR4X 3733(TBD)

       nSensor Interface Engine

 Support high speed serial interface like MIPI/sub-LVDS /HiSPi up to 12 channels and 5 clocks

(5C12D) : 1C4D(2.5G) + 2C4D(1.5G) x2

 Support parallel sensor interface Input

 Support maximum input width up to 8188

 BT.601/656(8-bit)/BT.1120 x2

 Support 12-bit sensor data input

 Support companding HDR sensor

 Built-in color pattern generation

 Sensor black level clamping

 Efficient defect concealment algorithm

 Flexible image analysis flow for AE, AWB purpose

 Programmable histogram analysis

 In-pipeline color shading compensation technology

 Support EIS with gyro-sensor input

 Support RGBIr4x4, RCCB format

 Support up to 8Mp75 or 640M pixel/sec for typical case

 Support up to 3 HDR sensor (Two HDR with 3 frames or three HDR with 2 frames)
