360° Panoramic Vechicle Mounted System (2015-04-14)

Huatu successfully developed "360 degrees Panoramic Vechicle Mounted System", it depends on team's unique panoramic imaging technology to achieve a new breakthrough in this field.

The system consists of a full vision sensor and a laser imaging PTZ. Among them, full vision sensor with six to eight independent HD sensors, realizes cover 360-degree  surrounding environment with dead angle, so that car staff can have real-time observation and master entire vehicle surrounding environment information. Laser imaging PTZ can quickly discovers and locks interested by panoramic linkage technology, and performs long-range laser irradiation and high magnification on the target, enabling it to clearly distinguish facial features beyond 500 meters.

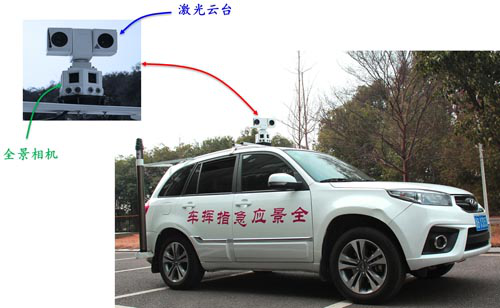

                                   System composition

Imaging resolution of full vision sensor in the system is between 8MP and 16 MP, and frame rate is 25fps, and effective observation distance is between 300 and 500 meters. Laser PTZ imaging resolution is 2MP, and frame rate is 30fps, it can achieves between 30 and 50 times zoom, effective observation distance is between 10 and 1500 meters.

That system can effectively solves the problem of full vision observation technology of surrounding environment of vehicle, and to make car quickly found a target, greatly improve emergency command response speed, for vehicle protection, emergency command, environmental forensics and other military applications provide a new technical means.

Image taken by system, through panoramic image in the background can realize no dead angle of surrounding environment of vehicle, which is good to the quick search of target. PTZ screen can realize the linkage localization of target, and can enlarge local details of the target.

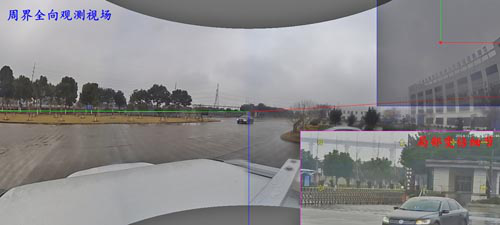

                Image taken by system

Imaging system can also be expanded horizontally so that a single image can be used to observe environment of entire vehicle

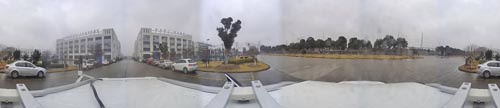

                          Horizontal panoramic capture
