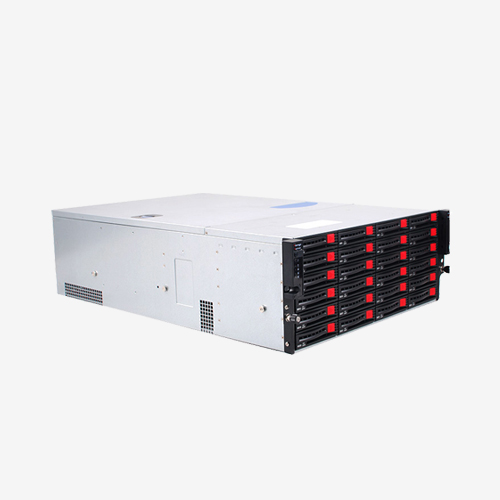

Storage Server 4U 24SLOTS
Model:HTSS0424
● 4U rack-mountable storage server
● Support 24 SATA slots, the max. capacity up to 192TB
● Support RIAD 0,1,5,6,50,60
● Two power supplies,high reliability
HTSS0424 is designed for video surveillance industry to create an enterprise-class mass storage server, Adopt INTEL latest C222 chipset, support Haswell architecture E3-1200V3 series processors, a single module up to 96TB of storage space, suitable for small centralized monitoring storage , can well work with various surveillance VMS, to form a standard network hard disk video recorder (NVR).
HTSS0424 adopt RIAD technology, support hot swappable hard drives, dual Gigabit Ethernet ports ,redundant hot backup power supplies and intelligent control fans, thoroughly protect users' data. Support direct operation over a standard ethernet network and is fully compatible with existing ethernet infrastructure and existing network management software, providing an extremely cost-effective, high-performance video surveillance network storage solution.
Application Environment
● Widely used in video surveillance industry such as safe city, banks, transportation, enterprises and institutions, etc..
High Performance
● Support one Intel Core I3 dual-core processor or Intel Xeon E3-1200V3 series quad-core processor , data transfer rates up to 5GT/s, 64-bit expansion, I/O acceleration, Turbo, Hyper-Threading Technology
● 4 memory slots, maximum support 32GB 1333/1600 MT / S DDR3 ECC memory
● 2 GE ports on the board, support I / OA technology, support link aggregation and binding redundancy
High Reliability
● Single module supports up to 16pcs 3.5-inch hot-swappable SATA hard disks, built-in 2 * 2.5 "or 1 * 3.5" hard disk slot, up to max. 48TB in total
● Support RAID 0,1,5,6,50,60
● The system provides four expansion slots: 1 * PCI-E3.0x16 (x8); 1 * PCI-E2.0x8; 1 * PCE-Ex8 (x4); 1 * PCI32bit / 33MHz, provide users with adequate expand space
● Standard 500W power supply, 700W 1 + 1 spare power supply to improve system redundancy and security
Easy Management
Monitor the connection status, network status, hardware status, RAID status, etc. of the storage device, and may determine the device fault level according to the buzzer sound. Record the device event information and operation log in real time .
Housing | 4U 19-inch standard rack server |
Size | 178mm*437mm*660mm (height * width * depth) |
CPU | Support 1 Intel dual-core (I3-4100 series) / quad-core processor (Xeon E3-1200V3 series) |
Chipset | Intel C222 chipset |
Memory | 4 DIMM slots, support max. 16GB 1333MHz DDR3 ECC memory |
Hard disk Slot | Support 24pcs SATA slots , 3.5-inch,hot swappable hard drive |
Hard Disk standard | Enterprise SATA / SAS, surveillance level SATA |
Storage capacity | 96TB（ calculated by 6TB per SATA） |
Expansion slot | 1*PCI-E3.0 x16(x8);1*PCI-E2.0x8;1*PCI-E2.0x8(x4);1*PCI 32bit/33MHz |
Network card | Integrated dual gigabit server NICs, support load balancing and failure replacement |
RAID | RAID 0、1、5、6、50、60 |
Display controller | Integrated display controller |
External device port | 1 * VGA, 6 * USB (rear 4, front 2), 2 * RJ45, 1 * serial port (Asynchronous -232C 9-pin port) |
Power supply | Standard 650W single power supply, spare 700W 1 +1 pare power supply |
CD-ROM | Built-in SATA interface thin DVD |
Management | Fully monitor the storage device connection status, network status, hardware status, RAID status |
Operation system | Windows2008 R2/2012 |
Windows 7 | |
Windows 10 | |
Red Hat Linux 6.3_x32/x64 | |
Red Hat Enterprise Linux 6.0 U3 X32&X64 | |
SUSE SLES 11 sp3_x86_64 | |
Temperature | Working tem.: 10 ° C to 35 ° C , storage tem.: ° C to + 55 ° C |
Humidity | Working maximum relative humidity 90% RH (35 ℃) |
Noise | In the operating mode, the sound pressure is measured at the side<50dba< p=""> |
Electrostatic discharge | Each Intel environment temperature test specification 15KV |
