Application Areas:
Suitable for Financial,Traffic,Government,Schools,Airports,Factories,Hotels and other places which need high-definition video surveillance.
Order Models:

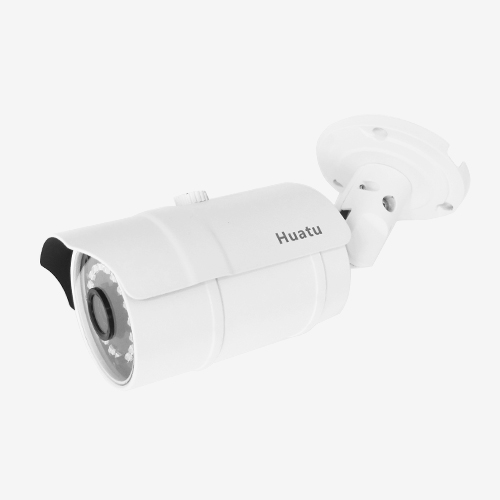

HTIP2A-H7CCTFX-AEJB
Camera |
Media Processor | High-performance Hisilicon DSP |
Image Sensor | 1/2.9” 2MP progressive scan CMOS |
Shuttle time | 1/5s to 1/50,000s |
Min IIIumination | Color：0.1 Lux /F1.2 B/W：0.001 Lux / F1.2;0Lux IR On |
Lens | 3.6mm |
IR Range | Up to 15m |
Day&Night | IR cut filter with auto switch |
Compression |
Video Compression | H.265/H.264/MJPEG |
Coding standard | H.265 MainProfile, H.264 Baseline/MainProfile/HighProfile, |
Image |
Max Image Size | 1920(H)×1080(V) |
Stream | Three-streams |
Frame Rate | First Stream : 30fps @ (1920 × 1080); Second-stream: 30fps@ (640 × 480); Third-stream : 30fps@ (352 × 288); |
Network |
Alarm Trigger | Motion detection |
Protocols | IPv4/IPv6、RTSP/RTP/RTCP、TCP/UDP、HTTP、DHCP、DNS、FTP、DDNS、PPPoE、SMTP、QOS、Onvif |
Onvif | V2.6.2/Profile S |
Browser | IE(8、9、10、11),Chrome,Firefox,Safaribetc,etc |
Software Development Kit | Linux/Windows C++/C SDK |
Interface |
Network | 1 RJ45 10M/100M adaptive Ethernet port |
Reset | A reset button (press and hold 3 seconds valid) |
General Specifications |
Operating Conditions | -40℃ ~ 60℃,humidity less than 95% |
Power Supply | DC12V±10%, PoE (802.3af) |
Power Consumption | 4W |
Weather proof rating | IP66 |
Dimensions(mm) | 220×56.2×60 |
Weight(kg) | 0.47 |
