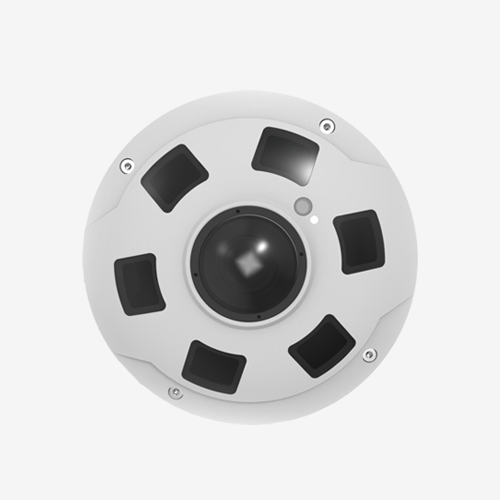

12MP Fisheye Panoramic Camera

12MP Fisheye Panoramic Camera

Model:HTIP33-H6UCJPXX-AEJF

• UP to 12 megapixel resolution(4000×3000)
• Max 20fps@12MP(4000×3000)
• H.265/H.264High Profile @4Level
• Day/Night(ICR)&3D DNR&AWB&AGC&BLC

Category: 12MP Fisheye 360°


Application Areas:

Suitable for Financial,Traffic,Government,Schools,Airports,Factories,Hotels and other places which need high-definition video surveillance.


Order Models:

HTIP33-H6UCJPXX-AEJF




Camera

Media Processor

High-performance Hisilicon DSP

Image Sensor

1/1.7” 12MP progressive scan CMOS

Shuttle time

1/5s to 1/50,000s

Min IIIumination

Color:0.01 Lux /F2.8; B/W:0.001 Lux / F2.8; 0Lux IR On

WDR

100dB

Lens Focal Length

1.98mm

Lens Max. Aperture

F2.8

IR Range

5m

Day&Night

IR cut filter with auto switch

Compression

Video Compression

H.265/H.264/MJPEG

Coding standard

H.265 MainProfile

Audio Compression

G.711a/G.711u

Audio Bit Rate

G.711a(8kbps)/G.711u(8kbps)


Max Image Size

4000(H)×3000(V)

Stream

Dual streams

Frame Rate

First stream: 20fps@(4000 × 3000)

Second-stream: 30fps@ (640 × 640)

Display Mode

immersive dewarping mode

Network

Alarm Trigger

Motion detection

Protocols

IPv4/IPv6、RTSP/RTP/RTCP、TCP/UDP、HTTP、DHCP、DNS、FTP、DDNS、PPPoE、SMTP、QOS、Onvif

Onvif

 V2.6.1/Profile S

Browser

IE(8、9、10、11),Chrome,Firefox,Safaribetc,etc

Software Development Kit

 Linux/Windows C++/C SDK

Interface

Memory Slot

Micro SD, max up to128G for local storage

Audio In

1-channel

Audio Out

1-channel

Alarm

1 In/1 Out

Video Out

1Vp-p Composite Output

Network

1 RJ45 10M/100M adaptive Ethernet port

Reset

A reset button (press and hold 3 seconds valid)

General Specifications

Operating Conditions

-40℃ ~ 60℃,humidty less than 95%

Power Supply

DC12V±10%,PoE (802.3af)

Power Consumption

<2.5W

Weather proof rating

IP66

Dimensions(mm)

Φ160×45.99

Weight(kg)

0.6
