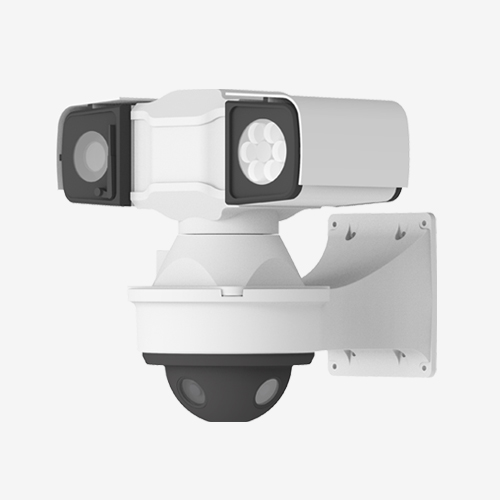

15MP Multi-Sensor Panoramic Camera+PTZ Camera

15MP Multi-Sensor Panoramic Camera+PTZ Camera

Model:HTPA32-H5DCVF1-JF

• 15MP 360 degree panoramic surveillance
• 20X digital zoom in panoramic image, 30X optical zoom in PTZ
• One-touch link function, capture panorama&close-up meantime
• Real-time surveillance, 360º coverage
• No distortion, no gap, no different exposure in panoramic image

Category: Multi-Sensor Panoramic+PTZ
Contact us

HTPA32-H5DCVF1-JF Multi-Sensor Panoramic Camera + PTZ Camera is a combination of 8-sensor panoramic camera and PTZ camera, it provides both panorama and close-up surveillance view to users, one-touch link function makes PTZ promptly position the details over panoramic view. It is perfect to be adopted in large-scale square, industry park, stadium, exhibition&convention center, airport, seaport, city surveillance etc...



                                 15MP 360º Multi-sensor Panoramic +PTZ camera

Panoramic Camera

Image Sensor

1/2.8” Progressive Scan CMOS

Image Sensor Qty.

5 sensors

Minimum Illumination

Color：0.02Lux @ F1.4 AGC On  B/W：0.001Lux@ F1.4 AGC On

Lens:

2.8mm

Angel of View

360º

S/N

≥50dB

Others

WDR,AWB, AGC, AS, 3D DNR

Image Compression

H.264，H.264(Baseline/Main Profile/High Profile)

Max. Image Resolution

15MP(1536x2048x5)

Resolution&Frame rate

Main stream：

50Hz: 25fps ( 1536×2048×5, 960×1280×5)

60Hz: 30fps  (1536×2048×5, 960×1280×5)

Sub stream：

50Hz: 25fps (480x640x8, 240×320×8)

60Hz: 30fps  (480x640x8, 240×320×8)

3D Immersive Control

Zoom in/out, drag any position in panoramic image by mouse

Protocols

TCP/IP、HTTP、HTTPS、DHCP、UDP、RTP、RTCP、RTSP、SNMP、802.1x、UPnP、DDNS、SMTP, Bonjour

Tracking PTZ Camera

Image Sensor

1/2.8” Progressive Scan CMOS

Minimum Illumination

Color: 0.01 Lux@(F1.2,AGC ON); B/W: 0.001 Lux@(F1.2,AGC ON)

S/N

≥50dB

2D 3D DNR

Support

Focal Length

4.3~129mm, 30X optical zoom

IR Distance

100 meters

Image Compression

H.264，H.264(Baseline/Main Profile/High Profile)

Max. Image Resolution

1920×1080

Resolution&Frame rate

Main stream：50Hz:25fps 1920×1080，60Hz:30fps 1920×1080

Sub stream：50Hz:25fps 640×360，60Hz:30fps 640×360

Range

Pan: 360 °  endless; Tilt: -90°~ 90°

Speed

Pan Manual Speed: 0°~60°/s, Tilt Manual Speed: 0°~40°/s

Interface

Reset

Support

Alarm

Alarm in/out

Ethernet

2xRJ45，10M/100M/1000M Ethernet interface

General

Working Temperature& Humidity

-40℃~60℃/95%RH

Protection Level

IP66 standard, TVS 6,000V lightning protection, surge protection and voltage transient protection

Power Supply

DC24V

Power Consumption

Max. 80W

Dimension

397.5×394x388.2mm

Weight

13kg


DownloadSentry 15MP 360º Panoramic +PTZ Camera Specification.pdf
