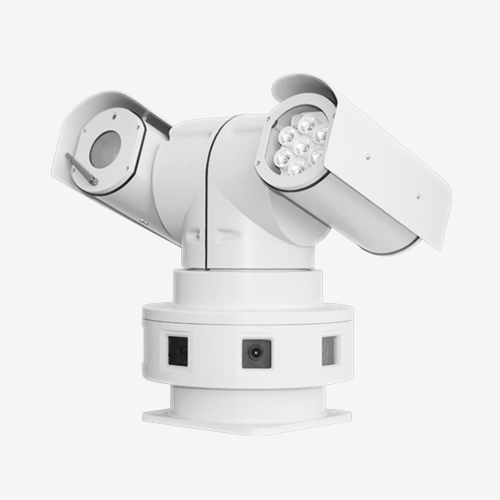

24MP Multi-Sensor+PTZ Camera
Model:HTPA31-H5DCVF3-JF
• 24MP(3MP sensorx8) panoramic camera plus 2MP PTZ camera integration design

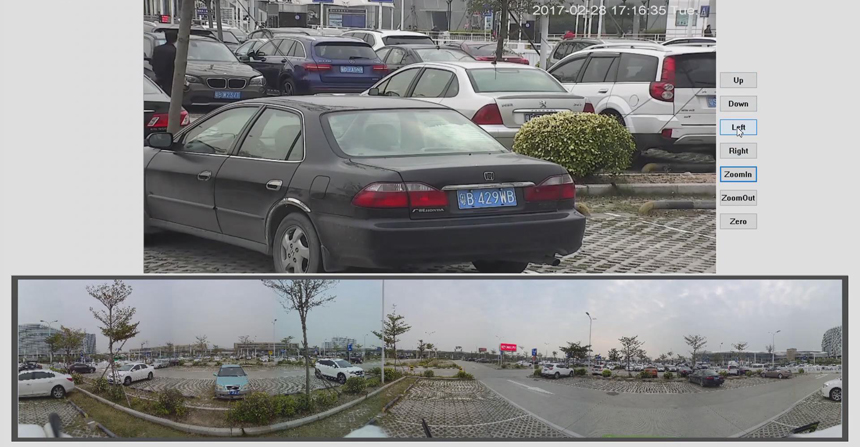

• One-touch link function, capture panorama and close-up meantime
• Panoramic 360º horizontal coverage
• Seamless stitching, no visible gaps, gain situational awareness
• 30X optical zoom, 32X digital zoom, Array IR in PT
HTPA31 series 360º panoramic + PTZ camera is a combination of 8-sensor panoramic camera and PTZ, it provides both panorama and close-up surveillance view to users, one-touch link function makes PTZ promptly position the details over panoramic view. It is perfect to be used in various special vehicles such as military vehicle, police vehicle etc.
360º Panoramic+PTZ vehicle-mounted camera | ||
Panoramic Camera | Image Sensor | 1/2.8” Progressive Scan CMOS |
Image Sensor Qty. | 8 sensors | |
Minimum Illumination | Color:0.02 Lux@(F1.4,AGC ON); B/W:0.001 Lux@(F1.4,AGC ON) | |
Lens: | 3.6mm | |
Angel of View | Horizontal: 360º，Vertical: 80º | |
S/N | ≥50dB | |
Others | WDR,AWB, AGC, AS, 3D DNR | |
Image Compression | H.264，H.264(Baseline/Main Profile/High Profile) | |
Max. Image Resolution | 960×1280×8 or 1536x2048x8 | |
Resolution&Frame rate | Main stream：50Hz: 25fps 960×1280×8, 25fps 1536×2048×8 60Hz: 30fps 960×1280×8, 30fps 1536×2048×8 | |
Sub stream：50Hz: 25fps 480×640×8, 60Hz: 30fps 480×640×8 | ||
3D Immersive Control | Zoom in/out, drag any position in panoramic image by mouse | |
Protocols | TCP/IP、HTTP、HTTPS、DHCP、UDP、RTP、RTCP、RTSP、SNMP、802.1x、UPnP、DDNS、SMTP, Bonjour | |
PTZ Camera | Image Sensor | 1/2.8” Progressive Scan CMOS |
Minimum Illumination | Color: 0.01 Lux@(F1.2,AGC ON); B/W: 0.001 Lux@(F1.2,AGC ON) | |
S/N | ≥50dB | |
2D 3D DNR | Support | |
Focal Length | 4.3~129mm, 30X optical zoom, 32X digital zoom | |
IR Distance | 100 meters | |
Image Compression | H.265，H.264(Baseline/Main Profile/High Profile) | |
Max. Image Resolution | 1920×1080 | |
Resolution&Frame rate | Main stream：50Hz:25fps 1920×1080，60Hz:30fps 1920×1080 | |
Sub stream：50Hz:25fps 640×360，60Hz:30fps 640×360 | ||
Range | Pan: 360 ° endless; Tilt: -90°~ 90° | |
Speed | Pan Manual Speed: 0°~60°/s,Tilt Manual Speed: 0°~40°/s | |
Interface | Reset | Support |
Ethernet | 1xRJ45，10M/100M/1000M Ethernet interface | |
General | Working Temperature& Humidity | -40℃~60℃/95%RH |
Protection Level | IP66 standard | |
Power Supply | DC12V | |
Power Consumption | Max. 100W | |
Dimension | 375×245×343mm | |
Weight | 11kg | |
