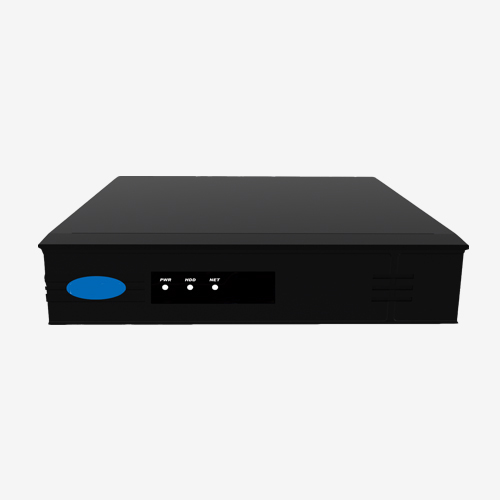

H.265 4CH NVR with 1-SATA 4-PoE

H.265 4CH NVR with 1-SATA 4-PoE

Model:HTNR-5104-P4

• H.265/H.264 decoding
• 4 channels IP camera input
• Support 4ch synchronous playback
• Support 1 SATA HDD(no limited)
• Support HDMI&VAG interface
• Support Audio function

Category: H.265 NVR (PoE)
Contact us

H.265 4CH NVR with 1-SATA 4-PoE


• H.265/H.264 decoding
• 4 channels IP camera input
• Support 4ch synchronous playback
• Support 1 SATA HDD(no limited)
• Support HDMI&VAG interface
• Support Audio function
• Support Onvif 2.4 protocol
• Support mobile monitoring, P2P

ChipsetHi3798M
RAM512MB
OSEmbedded Linux
Video&Audio inputIncoming bandwidth32Mbps(Up to 4CH 1080P@8M)
IPC Input4CH
Video&Audio outputVGA1CH,1920×1080,1280×1024,1280×720,1024×768
HDMI1.4a
3840×2160，1920×1080,1280×1024,1280×720,1024×768
Audio Output1CH,RCA(Line out,2Vp-p,300ohms)
Video&Audio encodingAudio CompressionG.711A
Audio Bit Rate64Kbps
Video&Audio decodingIP channel ResolutionMain stream:Up to 4096*3072 Auxiliary stream:D1
Video decoding H.265（Main Profile@L5.0 High-tie）/H.264(Up to High Profile@Level5.0）
Audio decoding G.711A/G711U/ACC
Synchronous Playback4CH
Decoding Ability4CH 1080P@30FPS
Other FunctionBidirectional TalkTwo-way voice intercom function
Motion DetectionZones: 396(22*18),Sensitivity: 1~6 (level 6 is highest)
Picture CaptureSupport JPEG Capture
HDD InterfaceSATA1 SATA Interface
Max CapacityUnlimited
POE InterfacePOE Interface4CH
IEEE 802.3af
RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤45W
External InterfaceNetwork Interface1 RJ45 10M/100M self-adaptive Ethernet interface
USB1 USB2.0 Interface, 1 USB3.0 Interface
StructureDimensions410*293*60mm
Size215*235*45mm
Weight1.7KG
InstallationDesktop Installation
GeneralPower SupplyDC 48V 1.35A
Working Temperature -10℃--＋55℃
Working Humidity10％--90％
Consumption7W(without HDD)
