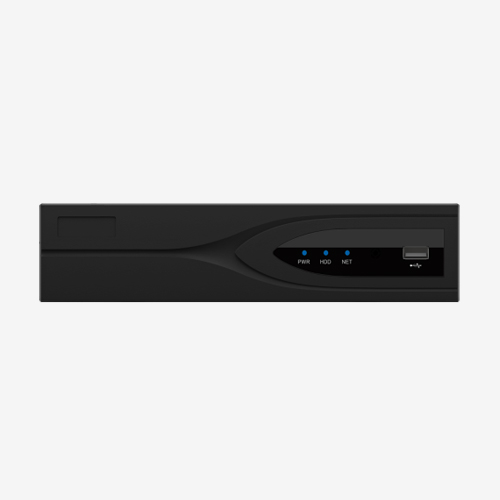

H.265 32CH NVR with 2-SATA 16-PoE
Model:HTNR-7116-2-P16
• H.265/H.264 decoding
• 32 channels IP camera input
• Support 16ch synchronous playback
• Support 2 SATA HDD(no limited)
• Support HDMI&VAG interface
• Support Audio function
H.265 32CH NVR with 2-SATA 16-PoE
• H.265/H.264 decoding
• 32 channels IP camera input
• Support 16ch synchronous playback
• Support 2 SATA HDD(no limited)
• Support HDMI&VAG interface
• Support Audio function
• Support Onvif 2.4 protocol
• Support mobile monitoring, P2P
| Chipset | Hi3536 | |
| RAM | 1.5GB DDR3 | |
| OS | Embedded Linux | |
| Video&Audio input | Bidirectional Talk | 1CH,BNC(Line in,2Vpp,1Kohms) |
| Incoming bandwidth | 192Mbps | |
| IPC Input | 32CH | |
| Video&Audio output | VGA | 1CH,1920×1080,1366×768,1280×1024,1280×720,1024×768 |
| HDMI | Standard 2.0 | |
| 3840×2160,1920×1080,1366×768,1280×1024,1280×720,1024×768 | ||
| Audio Output | 1CH,RCA(Line out,2Vp-p,300ohms) | |
| Video&Audio encoding | Audio Compression | G.711A |
| Audio Bit Rate | 64Kbps | |
| Video&Audio decoding | IP channel Resolution | Main stream:Up to 4096*3072 Auxiliary stream:D1 |
| Video decoding | H.264/H.265 | |
| Audio decoding | G.711A，G.726 | |
| Synchronous Playback | Up to 16CH | |
| Decoding Ability | 16CH 1080P@30FPS | |
| Other Function | Bidirectional Talk | Two-way voice intercom function |
| Motion Detection | Zones: 396(22*18),Sensitivity: 1~6 (level 6 is highest) | |
| Picture Capture | Support JPEG Capture | |
| HDD Interface | SATA | 2 SATA Interfaces |
| Max Capacity | Unlimited | |
| POE Interface | Interface | 16 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Supported standard | IEEE 802.3af | |
| Power | ≥120W | |
| External Interface | Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB | 2 USB2.0 Interfaces | |
| Structure | Dimensions | 405*365*123mm |
| Size | 1U,360*311.5*48mm | |
| Weight | 3KG(without HDD) | |
| Installation | Desktop Installation | |
| General | Power Supply | 110V~220V±10%, 47Hz～63Hz |
| Working Temperature | 0℃--＋55℃ | |
| Working Humidity | 10％--90％ | |
| Consumption | 20W(without HDD,without POE) | |
