15MP Multi-Sensor Panoramic 360°
Model:HTPA13-H5DC9F1-JF
• 15MP 360° panoramic surveillance
• One camera replaces multiple single-sensor cameras
• Seamless stitching technology, no visible gaps
• Sync. exposure control to have a fine tuned image
• Gain real-time situational awareness
• True immersive surveillance experience in real-time&playback
HTPA13-H5DC9F1-JF Multi-Sensor Panoramic Camera provides 360° field of view, is ideal for the surveillance situations which require to display wide area in single window, create an unique and effective panoramic immersive surveillance experience. Instead of deploying multiple surveillance cameras, it only takes one set panoramic camera to have the entire area covered, which helps users to reduce unnecessary cost on cabling, installation, power consumption.
Multi-Sensor Panoramic Camera is perfect to be adopted in large open spaces such as square, industry park, stadium, exhibition&convention center,airport, seaport, city surveillance etc...

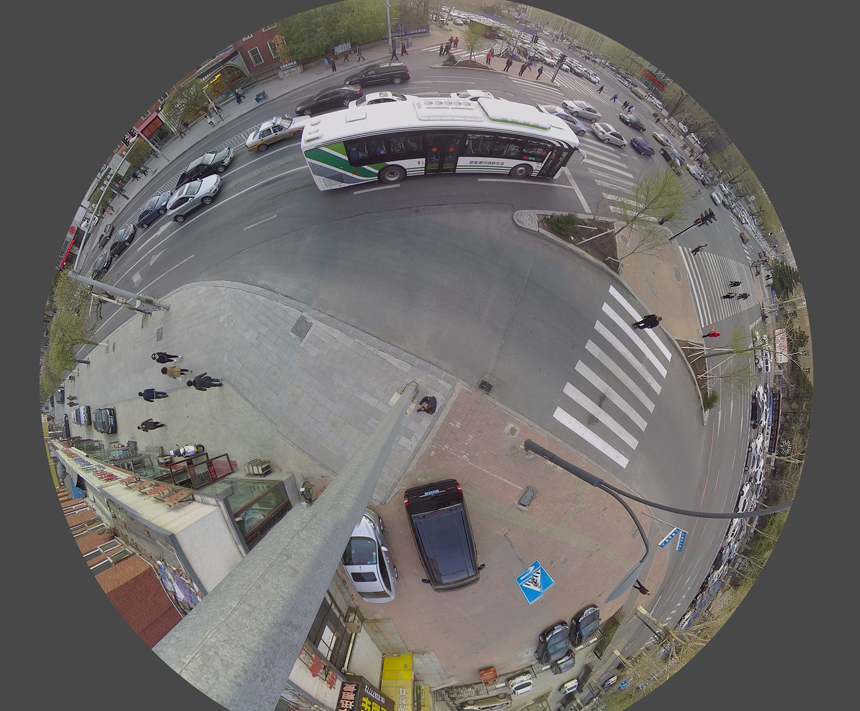

360 Degree Field of View

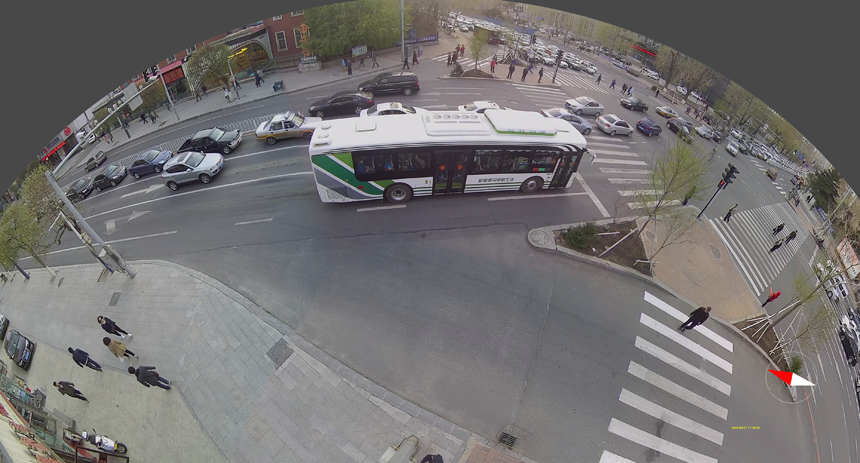

3D ePTZ Operation
Camera | |
DSP | Hisilicon Series High Performance DSP |
Sensor Type | 1/2.8"3.0 MP Pixel progressive scan CMOS |
Number of Sensor | 5 sensors |
Electronic Shutter | Manual/Auto;1/5s to 1/50,000s |
Min Illumination | Color：0.02Lux @ F1.4 AGC On B/W：0.001Lux@ F1.4 AGC On; |
Lens | 2.8mm lens x 5 |
Angle of View(lens) | horizontal 360°, vertical360° |
Angle of Adjustment | horizontal 0°~360° |
D/N | Day / Night Mode, IR cut filter |
WDR | super WDR |
Encoding Standard | |
Video Compression | H.264 |
Coding standard | H.264 Baseline/MainProfile/HighProfile Optional |
Video compression rate | 200kbps~12Mbps(each sensor) |
Image | |
Max. Image Size | 15MP / 5 x 2048x1536 |
ePTZ | Electronic Pan / Tilt / Zoom |
Frame Rate | Main stream: 50Hz: 25fps( 5 x 2048x1536) Sub stream: 60Hz: 30fps(5x640x480) |
S/N | ≥50dB |
Noise Reduction Mode | 2D / 3D |
Image Setup | Auto white balance, Auto Gain, Auto Shutter Brightness, saturation,sharpness, contrast |
Network Function | |
Protocol | IPv4/IPv6、RTSP/RTP/RTCP、TCP/UDP、HTTP、DHCP、DNS、FTP、DDNS、PPPoE、QoS、UPnP、SMTP、SNMP、Bonjour |
Security | User authority, IP address filter, MAC address filter, 802.1x |
Interface Protocol | Onvif V2.6.1(each stream) / CGI / SDK |
General Function | One-key recovery |
Function Interface | |
Network Port | 1 * RJ45 10M/100M/1000M Self-adaption Ethernet port |
General Specification | |
Operating Conditions | -40℃ ~ 60℃, humidity less than 95% (No condensation) |
Power Supply | DC24V，1A |
Power Consumption | 24W |
Water-proof Level | IP66 |
Impact-resistant Level | IK10 |
Dimensions(mm) | Φ202 x 208mm |
Weight (kg) | 2.6 (net weight) |
