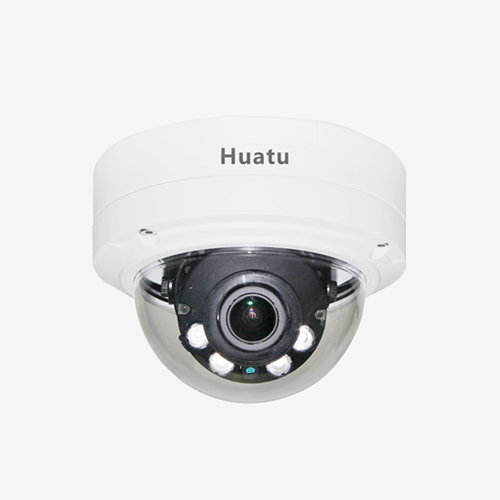

2 Megapixel Dome IP Camera
Model:HTIP1B-H3CCLSeries
• UP to 2 megapixel resolution(1920×1080)
• H.265 MainProfile, H.264Baseline/MainProfile/HighProfile
• Day/Night(ICR)&3D DNR&AWB&AGC&BLC
• IR range(5~20m)
Application Areas:
Suitable for Financial,Traffic,Government,Schools,Airports,Factories,Hotels and other places which need high-definition video surveillance.
Order Models:
HTIP1B-H3CCLZA-AEJB（Fixed Iris, Manually Varifocal Lens）
HTIP1B-H3CCLMA-AEJB（Fixed Iris,Motorized-Lens）
Camera | |
Media Processor | High-performance Hisilicon DSP |
Image Sensor | 1/2.8” 2MP progressive scan CMOS |
Shuttle time | 1/5s to 1/50,000s |
Min IIIumination | Color：0.002 Lux /F1.4 B/W 0.0002 Lux / F1.4;0Lux IR On |
Lens | 2.8~12mm optional |
Motorized-Lens | 2.8~12mm lens with AF optional |
IR Range | Up to 20m |
Day&Night | IR cut filter with auto switch |
Compression | |
Video Compression | H.265/H.264/MJPEG |
Coding standard | H.265 MainProfile,H.264Baseline/MainProfile/HighProfile, |
Image | |
Max Image Size | 1920(H)×1080(V) |
Stream | Three-streams |
Frame Rate | First Stream : 30fps @ (1920 × 1080); Second-stream: 30fps@ (640 × 480); Third-stream : 30fps@ (352 × 288); |
Network | |
Alarm Trigger | Motion detection |
Protocols | IPv4/IPv6、RTSP/RTP/RTCP、TCP/UDP、HTTP、DHCP、DNS、FTP、DDNS、PPPoE、SMTP、QOS 、Onvif |
Onvif | V2.6.2/Profile S |
Browser | IE(8、9、10、11),Chrome,Firefox,Safaribetc,etc |
Software Development Kit | Linux/Windows C++/C SDK |
Interface | |
Network | 1 RJ45 10M/100M adaptive Ethernet port |
Reset | A reset button (press and hold 3 seconds valid) |
General Specifications | |
Operating Conditions | -40℃ ~ 60℃,humidity less than 95% |
Power Supply | DC12V±10%,PoE (802.3af) |
Power Consumption | 6W |
Weather proof rating | IP66 |
Dimensions(mm) | φ137×99 |
Weight(kg) | 0.8 |
