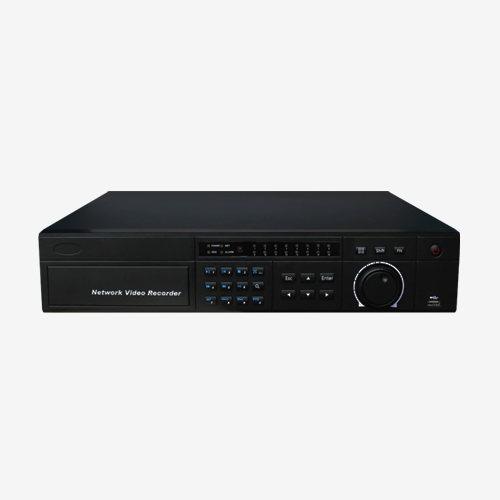

H.264 8CH NVR with 8-SATA

H.264 8CH NVR with 8-SATA

Model:HTNR-7008-8

• H.264/MJPEG-4 decoding
• 8 channels IP camera input
• Support 8ch synchronous playback
• Support 8 SATA HDD(no limited)
• Support HDMI&VAG&CVBS interface
• Support Audio&Alarm function

Category: H.264 NVR

H.264 8CH NVR with 8-SATA


• H.264/MJPEG-4 decoding
• 8 channels IP camera input
• Support 8ch synchronous playback
• Support 8 SATA HDD(no limited)
• Support HDMI&VAG&CVBS interface
• Support Audio&Alarm function
• Support Onvif 2.4 protocol
• Support mobile monitoring, P2P

ChipsetHi3535
RAM1GB DDR3
OSEmbedded Linux
Video&Audio inputBidirectional Talk1CH,BNC(Line in,2Vpp,1Kohms)
Incoming bandwidth96Mbps
Outgoing bandwidth96Mbps
IPC Input8CH
Video&Audio outputCVBS1CH,BNC(1.0Vp-p,75ohms)
VGA1CH,1920×1080,1280×1024,1280×720,1024×768
HDMIStandard 1.3a
1920×1080,1280×1024,1280×720,1024×768
Audio Output1CH,BNC(Line out,2Vp-p,300ohms)
Video&Audio encodingAudio CompressionG.711A
Audio Bit Rate64Kbps
Video&Audio decodingIP channel ResolutionMain stream:Up to 5632x4224 Auxiliary stream:D1
Video decoding MPEG-4/H.264(Up to High Profile@Level5.0
Audio decoding G.711A/G.726
Synchronous PlaybackUp to 8CH
Decoding Ability8CH 720P@30FPS or 6CH 1080P@30FPS
Elligent Analysis1CH Face detection or 2CH Perimeter detection
Up to 1080P
Other FunctionBidirectional TalkTwo-way voice intercom function
Motion DetectionZones: 396(22*18),Sensitivity: 1~6 (level 6 is highest)
Picture CaptureSupport JPEG Capture
HDD InterfaceSATA8 SATA Interfaces
eSATA1 eSATA Interface
Max CapacityUnlimited
External InterfaceNetwork Interface2 RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB2 USB2.0 Interfaces
Alarm Input16CH
 Open/Closed Relay
Alarm Output4CH
NO/NC
RS-2321 RS-232 interface
RS-4851 RS-485 interface
StructureDimensions520*520*215mm
Size2U,441*448*88mm
Weight7Kg(without HDD)
InstallationRack installation, desktop installation
GeneralPower Supply110V~220V±10%, 47Hz63Hz
DC +48V 1.875A(POE)
Working Temperature0--55
Working Humidity10--90
Consumption20W(without HDD)
