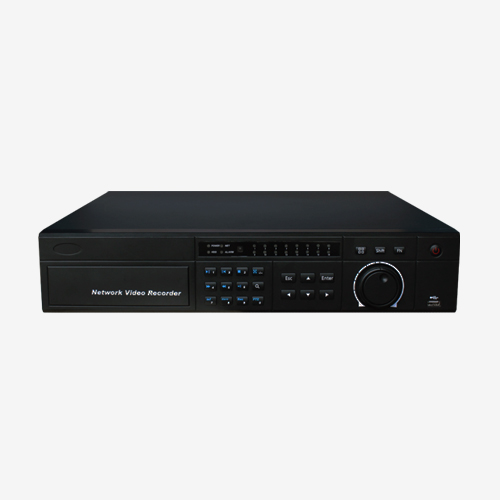

H.264 32CH NVR with 8-SATA
• H.264/MJPEG-4 decoding
• 32 channels IP camera input
• Support 32ch synchronous playback
• Support 8 SATA HDD(no limited)
• Support HDMI&VAG&CVBS interface
• Support Audio&Alarm function
• Support Onvif 2.4 protocol
• Support mobile monitoring, P2P
| Chipset | Hi3535 |
| RAM | 1GB DDR3 |
| OS | Embedded Linux |
| Video&Audio input | Bidirectional Talk | 1CH,BNC(Line in,2Vpp,1Kohms) |
| Incoming bandwidth | 200Mbps |
| Outgoing bandwidth | 160Mbps |
| IPC Input | 32CH |
| Video&Audio output | CVBS | 1CH,BNC(1.0Vp-p,75ohms) |
| VGA | 1CH,1920×1080,1280×1024,1280×720,1024×768 |
| HDMI | Standard 1.3a |
| 1920×1080,1280×1024,1280×720,1024×768 |
| Audio Output | 1CH,BNC(Line out,2Vp-p,300ohms) |
| Video&Audio encoding | Audio Compression | G.711A |
| Audio Bit Rate | 64Kbps |
| Video&Audio decoding | IP channel Resolution | Main stream:Up to 5632x4224 Auxiliary stream:D1 |
| Video decoding | MPEG-4/H.264(Up to High Profile@Level5.0） |
| Audio decoding | G.711A/G.726 |
| Synchronous Playback | Up to 32CH |
| Decoding Ability | 13CH 720P@30FPS or 6CH 1080P@30FPS |
| Elligent Analysis | N/A |
|
| Other Function | Bidirectional Talk | Two-way voice intercom function |
| Motion Detection | Zones: 396(22*18),Sensitivity: 1~6 (level 6 is highest) |
| Picture Capture | Support JPEG Capture |
| HDD Interface | SATA | 8 SATA Interfaces |
| eSATA | 1 eSATA Interface |
| Max Capacity | Unlimited |
| External Interface | Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB | 2 USB2.0 Interfaces |
| Alarm Input | 16CH |
| Open/Closed Relay |
| Alarm Output | 4CH |
| NO/NC |
| RS-232 | 1 RS-232 interface |
| RS-485 | 1 RS-485 interface |
| Structure | Dimensions | 520*520*215mm |
| Size | 2U,441*448*88mm |
| Weight | 7Kg(without HDD) |
| Installation | Rack installation, desktop installation |
| General | Power Supply | 110V~220V±10%, 47Hz～63Hz |
| DC +48V 1.875A(POE) |
| Working Temperature | 0℃--＋55℃ |
| Working Humidity | 10％--90％ |
| Consumption | 20W(without HDD) |
