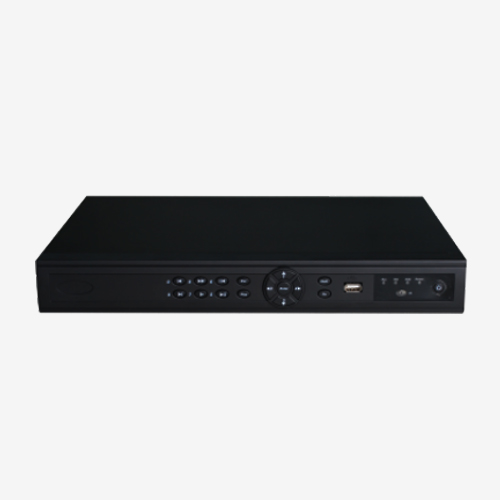

H.264 16CH NVR with 2-SATA
Model:HTNR-7016-2
• H.264/MJPEG-4 decoding
• 16 channels IP camera input
• Support 16ch synchronous playback
• Support 2 SATA HDD(no limited)
• Support HDMI&VAG&CVBS interface
• Support Audio&Alarm function
H.264 16CH NVR with 2-SATA
• H.264/MJPEG-4 decoding
• 16 channels IP camera input
• Support 16ch synchronous playback
• Support 2 SATA HDD(no limited)
• Support HDMI&VAG&CVBS interface
• Support Audio&Alarm function
• Support Onvif 2.4 protocol
• Support mobile monitoring, P2P
| Chipset | Hi3535 | |
| RAM | 512MB DDR3 | |
| OS | Embedded Linux | |
| Video&Audio input | Bidirectional Talk | 1CH,BNC(Line in,2Vpp,1Kohms) |
| Incoming bandwidth | 128Mbps | |
| Outgoing bandwidth | 64Mbps | |
| IPC Input | 16CH | |
| Video&Audio output | CVBS | 1CH,BNC(1.0Vp-p,75ohms) |
| VGA | 1CH,1920×1080,1280×1024,1280×720,1024×768 | |
| HDMI | Standard 1.3a | |
| 1920×1080,1280×1024,1280×720,1024×768 | ||
| Audio Output | 1CH,BNC(Line out,2Vp-p,300ohms) | |
| Video&Audio encoding | Audio Compression | G.711A |
| Audio Bit Rate | 64Kbps | |
| Video&Audio decoding | IP channel Resolution | Main stream:Up to 5632x4224 Auxiliary stream:D1 |
| Video decoding | MPEG-4/H.264(Up to High Profile@Level4.2） | |
| Audio decoding | G.711A/G.726 | |
| Synchronous Playback | Up to 16CH | |
| Decoding Ability | 13CH 720P@30FPS or 6CH 1080P@30FPS | |
| Elligent Analysis | 1CH Face detection or 2CH Perimeter detection | |
| Up to 1080P | ||
| Other Function | Bidirectional Talk | Two-way voice intercom function |
| Motion Detection | Zones: 396(22*18),Sensitivity: 1~6 (level 6 is highest) | |
| Picture Capture | Support JPEG Capture | |
| HDD Interface | SATA | 2 SATA Interfaces |
| Max Capacity | Unlimited | |
| POE Interface | POE Interface | N/A |
| Power | N/A | |
| External Interface | Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB | 2 USB2.0 Interfaces | |
| Alarm Input | 8CH | |
| Open/Closed Relay | ||
| Alarm Output | 3CH | |
| NO/NC | ||
| RS-485 | 1 RS-485 interface | |
| Structure | Dimensions | 405*335*120mm |
| Front Panel | LED | |
| Size | 1U,360*262*48mm | |
| Weight | 2Kg(without HDD) | |
| Installation | Desktop Installation | |
| General | Power Supply | DC +12V 3.3A |
| N/A | ||
| Working Temperature | -10℃--＋55℃ | |
| Working Humidity | 10％--90％ | |
| Consumption | 10W(without HDD,without POE) | |
