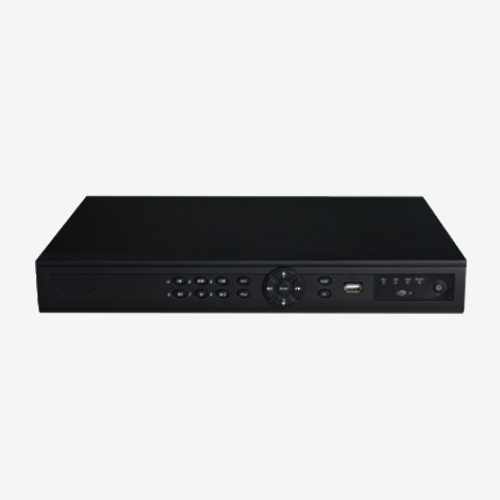

H.264 32CH NVR with 2-SATA 8-PoE

H.264 32CH NVR with 2-SATA 8-PoE

Model:HTNR-7032-2-P8

• H.264/MJPEG-4 decoding
• 32 channels IP camera input
• Support 16ch synchronous playback
• Support 8 SATA HDD(no limited)
• Support HDMI&VAG&CVBS interface
• Support Audio&Alarm function

Category: H.264 NVR (PoE)

H.264 32CH NVR with 2-SATA 8-PoE


• H.264/MJPEG-4 decoding

• 32 channels IP camera input

• Support 16ch synchronous playback

• Support 8 SATA HDD(no limited)

• Support HDMI&VAG&CVBS interface

• Support Audio&Alarm function

• Support Onvif 2.4 protocol

• Support mobile monitoring, P2P

ChipsetHi3535
RAM1GB DDR3
OSEmbedded Linux
Video&Audio inputBidirectional Talk1CH,BNC(Line in,2Vpp,1Kohms)
Incoming bandwidth200Mbps
Outgoing bandwidth160Mbps
IPC Input32CH
Video&Audio outputCVBS1CH,BNC(1.0Vp-p,75ohms)
VGA1CH,1920×1080,1280×1024,1280×720,1024×768
HDMIStandard 1.3a
1920×1080,1280×1024,1280×720,1024×768
Audio Output1CH,BNC(Line out,2Vp-p,300ohms)
Video&Audio encodingAudio CompressionG.711A
Audio Bit Rate64Kbps
Video&Audio decodingIP channel ResolutionMain stream:Up to 5632x4224 Auxiliary stream:D1
Video decoding MPEG-4/H.264(Up to High Profile@Level4.2
Audio decoding G.711A/G.726
Synchronous PlaybackUp to 16CH
Decoding Ability13CH 720P@30FPS or 6CH 1080P@30FPS
Elligent AnalysisN/A
Other FunctionBidirectional TalkTwo-way voice intercom function
Motion DetectionZones: 396(22*18),Sensitivity: 1~6 (level 6 is highest)
Picture CaptureSupport JPEG Capture
HDD InterfaceSATA2 SATA Interfaces
Max CapacityUnlimited
POE InterfacePOE Interface8CH
IEEE 802.3af
/Switch
RJ-45 10/100 Mbps self-adaptive Ethernet
interface
Power≤90W
External InterfaceNetwork Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB2 USB2.0 Interfaces
Alarm Input8CH
 Open/Closed Relay
Alarm Output3CH
NO/NC
RS-4851 RS-485 interface
StructureDimensions405*335*120mm
Front PanelLED
Size1U,360*262*48mm
Weight2Kg(without HDD)
InstallationDesktop Installation
GeneralPower SupplyDC +12V 3.3A
DC +48V 1.875A(POE)
Working Temperature -10--55
Working Humidity10--90
Consumption10W(without HDD,without POE)
