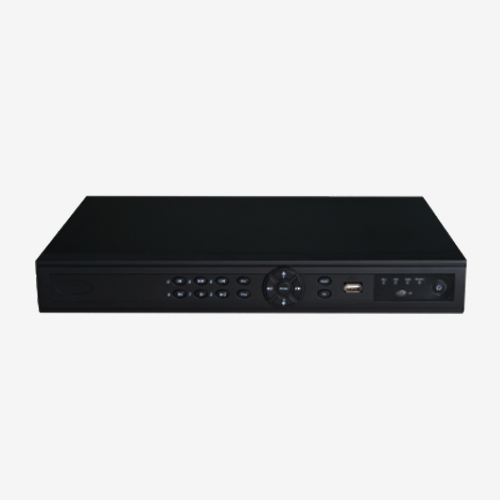

H.264 16CH NVR with 2-SATA 16-PoE

H.264 16CH NVR with 2-SATA 16-PoE

Model:HTNR-7016-2-P16

• H.264/MJPEG-4 decoding
• 16 channels IP camera input
• Support 16ch synchronous playback
• Support 2 SATA HDD(no limited)
• Support HDMI&VAG&CVBS interface
• Support Audio function

Category: H.264 NVR (PoE)

H.264 16CH NVR with 2-SATA 16-PoE


• H.264/MJPEG-4 decoding
• 16 channels IP camera input
• Support 16ch synchronous playback
• Support 2 SATA HDD(no limited)
• Support HDMI&VAG&CVBS interface
• Support Audio function
• Support Onvif 2.4 protocol
• Support mobile monitoring, P2P

ChipsetHi3535
RAM1GB DDR3
OSEmbedded Linux
Video&Audio inputBidirectional Talk1CH,BNC(Line in,2Vpp,1Kohms)
Incoming bandwidth128Mbps
Outgoing bandwidth128Mbps
IPC Input16CH
Video&Audio outputCVBS1CH,BNC(1.0Vp-p,75ohms)
VGA1CH,1920×1080,1280×1024,1280×720,1024×768
HDMIStandard 1.3a
1920×1080,1280×1024,1280×720,1024×768
Audio Output1CH,BNC(Line out,2Vp-p,300ohms)
Video&Audio encodingAudio CompressionG.711A
Audio Bit Rate64Kbps
Video&Audio decodingIP channel ResolutionMain stream:Up to 1920x2048 Auxiliary stream:D1
Video decoding MPEG-4/H.264(Up to High Profile@Level4.2
Audio decoding G.711A/G.726
Synchronous PlaybackUp to 16CH
Decoding Ability13CH 720P@30FPS or 6CH 1080P@30FPS
Elligent Analysis1CH Face detection or 2CH Perimeter detection
Up to 1080P
Other FunctionBidirectional TalkTwo-way voice intercom function
Motion DetectionZones: 396(22*18),Sensitivity: 1~6 (level 6 is highest)
Picture CaptureSupport JPEG Capture
HDD InterfaceSATA2 SATA Interfaces
Max CapacityUnlimited
POE InterfacePOE Interface16CH
IEEE 802.3af
RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤200W
External InterfaceNetwork Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB2 USB2.0 Interfaces
StructureDimensions405*365*123mm
Front PanelLED
Size1U,360*311.5*48mm
Weight3KG(without HDD)
InstallationDesktop Installation
GeneralPower Supply110V~220V±10%, 47Hz63Hz
Working Temperature0--55
Working Humidity10--90
Consumption10W(without HDD,without POE)
