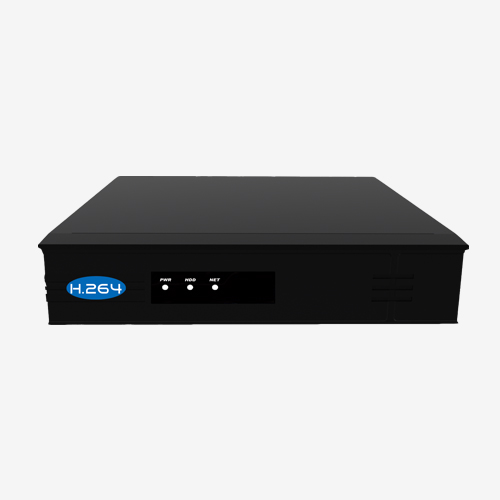

H.264 4CH NVR with 1-SATA 4-PoE

H.264 4CH NVR with 1-SATA 4-PoE

Model:HTNR-5004L-P4

• H.264/MJPEG-4 decoding
• 4 channels IP camera input
• Support 4ch synchronous playback
• Support 1 SATA HDD(no limited)
• Support HDMI&VAG interface
• Support Motion Detection function

Category: H.264 NVR (PoE)
Contact us

H.264 4CH NVR with 1-SATA 4-PoE


• H.264/MJPEG-4 decoding
• 4 channels IP camera input
• Support 4ch synchronous playback
• Support 1 SATA HDD(no limited)
• Support HDMI&VAG interface
• Support Motion Detection function
• Support Onvif 2.4 protocol
• Support mobile monitoring, P2P

ChipsetHi3520D
RAM256MB
OSEmbedded Linux
Incoming bandwidth48Mbps
Outgoing bandwidth48Mbps
IPC Input4CH
Video&Audio outputCVBSN/A
VGA1CH,1920×1080,1280×1024,1280×720,1024×768
HDMIStandard 1.3a
1920×1080,1280×1024,1280×720,1024×768
Audio OutputN/A
Video&Audio encodingAudio CompressionN/A
Audio Bit RateN/A
Video&Audio decodingIP channel ResolutionMain stream:Up to 1920x2048 Auxiliary stream:D1
Video decoding MPEG-4/H.264(Up to High Profile@Level5.0）
Audio decoding G.711A/G.726
Synchronous Playback4CH
Decoding Ability4CH 720P@30 or 2CH 1080P@30
Elligent AnalysisN/A
Other FunctionBidirectional TalkN/A
Motion DetectionZones: 396(22*18),Sensitivity: 1~6 (level 6 is highest)
Picture CaptureSupport JPEG Capture
HDD InterfaceSATA1 SATA Interface
Max CapacityUnlimited
POE InterfacePOE Interface4CH
IEEE 802.3af
RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤45W
External InterfaceNetwork Interface1 RJ45 10M/100M self-adaptive Ethernet interface
USB2 USB2.0 Interfaces
StructureDimensions410*293*60mm
Size215*235*45mm
Weight0.9KG(without HDD)
InstallationDesktop Installation
GeneralPower SupplyDC 48V 1.35A
Working Temperature 0℃--＋55℃
Working Humidity10％--90％
Consumption5W(without HDD)
