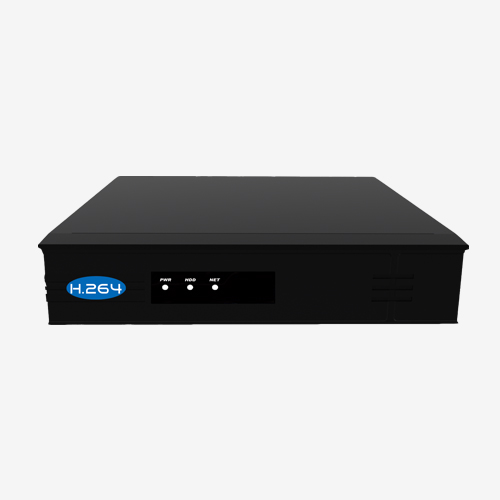

H.264 8CH NVR with 1-SATA 8-PoE

H.264 8CH NVR with 1-SATA 8-PoE

Model:HTNR-5008-P8

• H.264/MJPEG-4 decoding
• 8 channels IP camera input
• Support 8ch synchronous playback
• Support 1 SATA HDD(no limited)
• Support HDMI&VAG&CVBS interface
• Support Audio function

Category: H.264 NVR (PoE)
Contact us

H.264 8CH NVR with 1-SATA 8-PoE


• H.264/MJPEG-4 decoding
• 8 channels IP camera input
• Support 8ch synchronous playback
• Support 1 SATA HDD(no limited)
• Support HDMI&VAG&CVBS interface
• Support  Audio function
• Support Onvif 2.4 protocol
• Support mobile monitoring, P2P

ChipsetHi3535
RAM512MB
OSEmbedded Linux
Incoming bandwidth96Mbps
Outgoing bandwidth64Mbps
IPC Input8CH
Video&Audio outputCVBS1CH,BNC(1.0Vp-p,75ohms)
VGA1CH,1920×1080,1280×1024,1280×720,1024×768
HDMIStandard 1.3a
1920×1080,1280×1024,1280×720,1024×768
Audio Output1CH,BNC(Line out,2Vpp,300ohms)
Video&Audio encodingAudio CompressionG.711A
Audio Bit Rate64Kbps
Video&Audio decodingIP channel ResolutionMain stream:Up to 5632×4224 Auxiliary stream:D1
Video decoding MPEG-4/H.264(Up to High Profile@Level5.0）
Audio decoding G.711A/G.726
Synchronous Playback8CH
Decoding Ability8CH 720P@30FPS or 6CH 1080P@30FPS
Elligent Analysis1CH Face detection or 2CH Perimeter detection
Up to 1080P
Other FunctionBidirectional TalkTwo-way voice intercom function
Motion DetectionZones: 396(22*18),Sensitivity: 1~6 (level 6 is highest)
Picture CaptureSupport JPEG Capture
HDD InterfaceSATA1 SATA Interface
Max CapacityUnlimited
POE InterfacePOE Interface8CH
IEEE 802.3af
RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤68W
External InterfaceNetwork Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB2 USB2.0 Interfaces
StructureDimensions410*293*60mm
Size215*235*45mm
Weight0.9KG(without HDD)
InstallationDesktop Installation
GeneralPower SupplyDC 48V 1.875A
Working Temperature 0℃--＋55℃
Working Humidity10％--90％
Consumption7W(without HDD)
